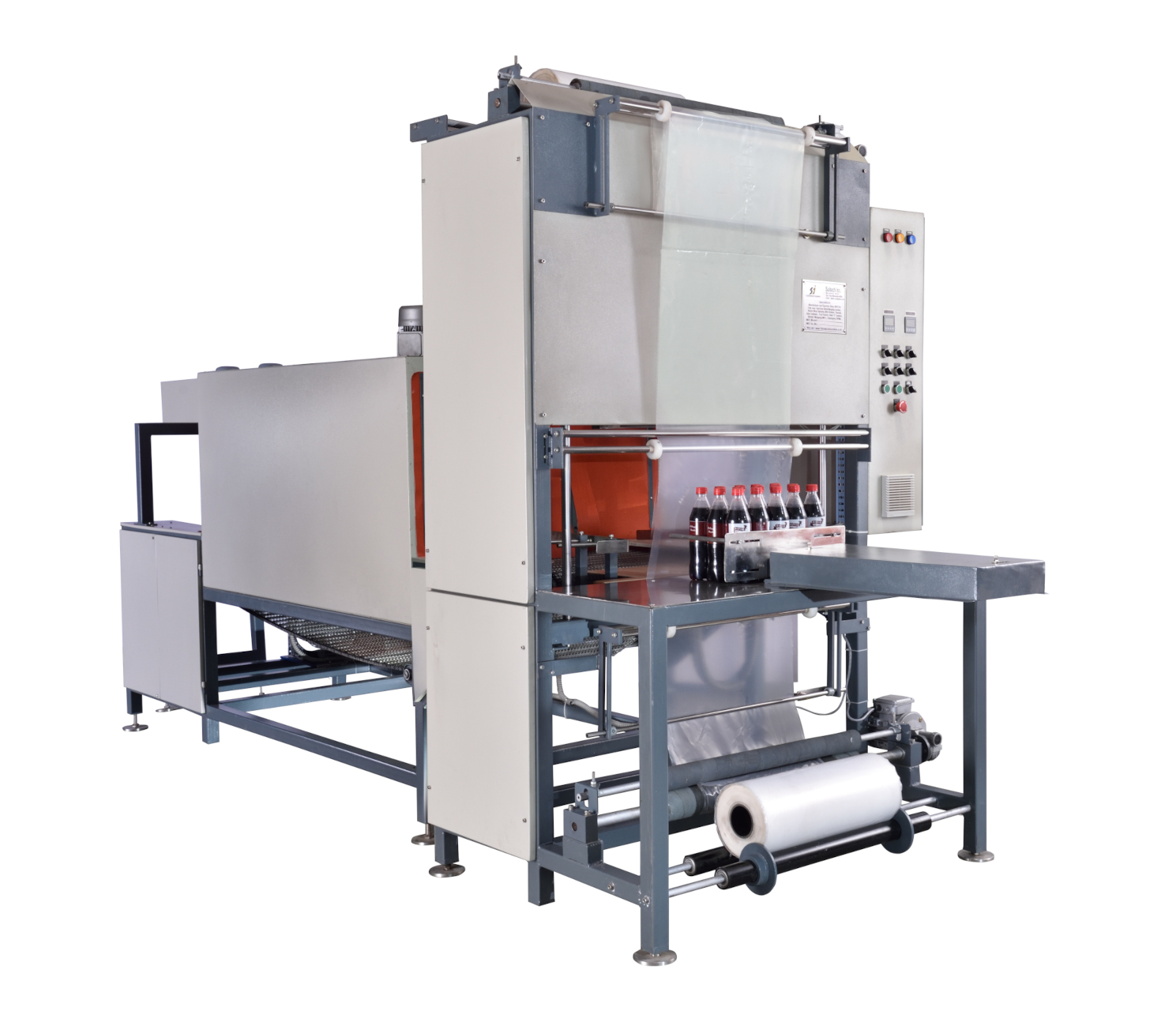

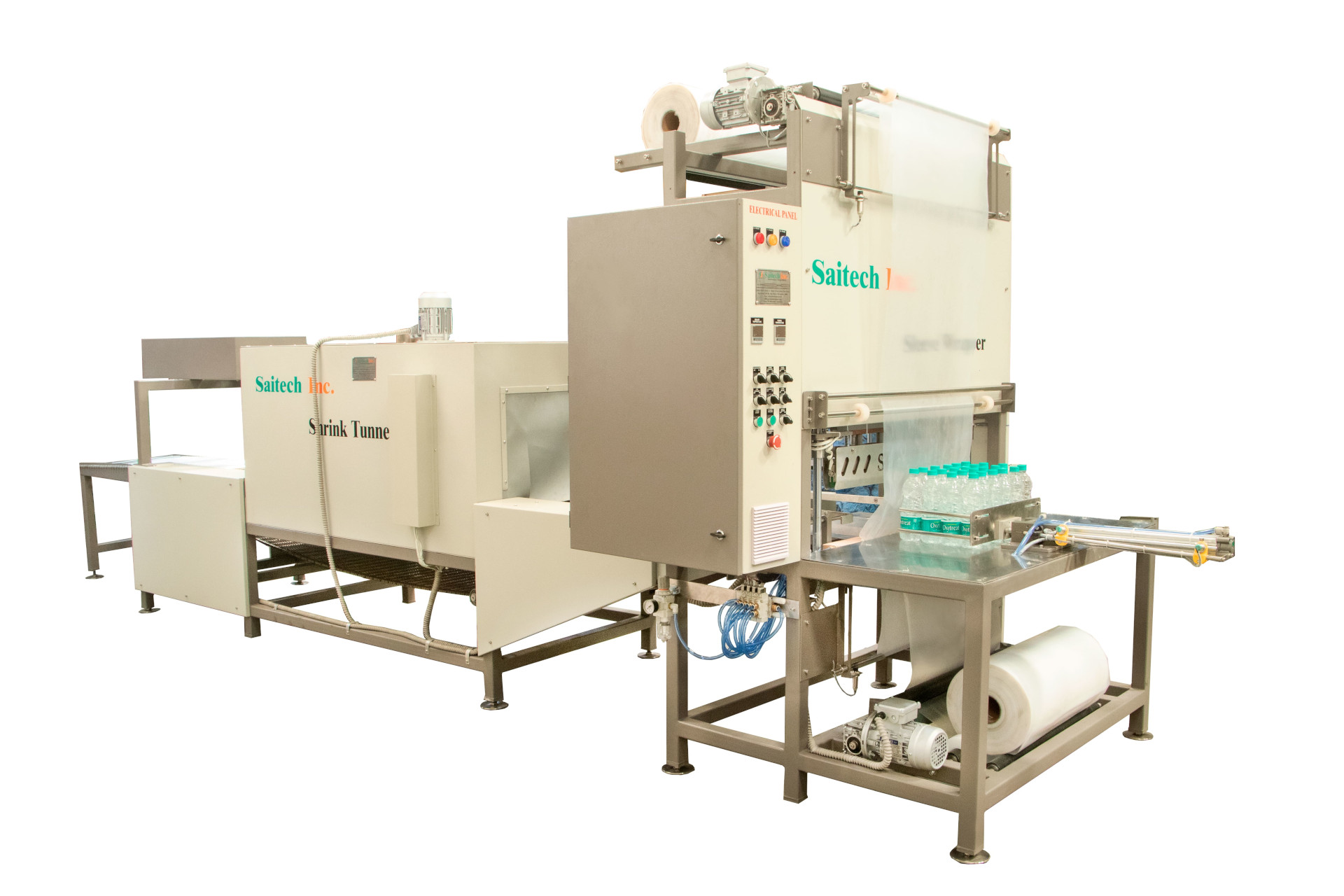

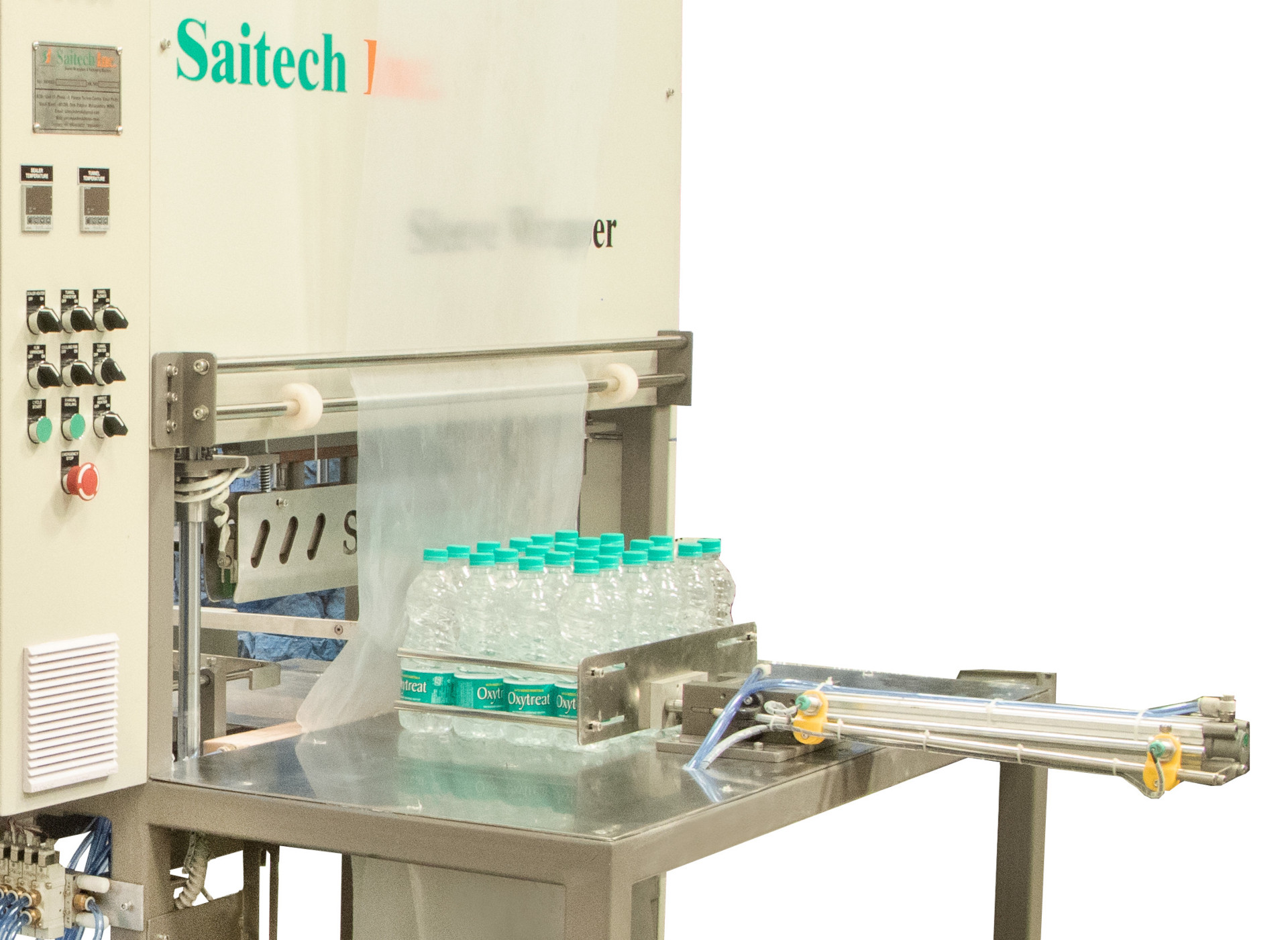

Semi Automatic Shrink Wrapping Machine

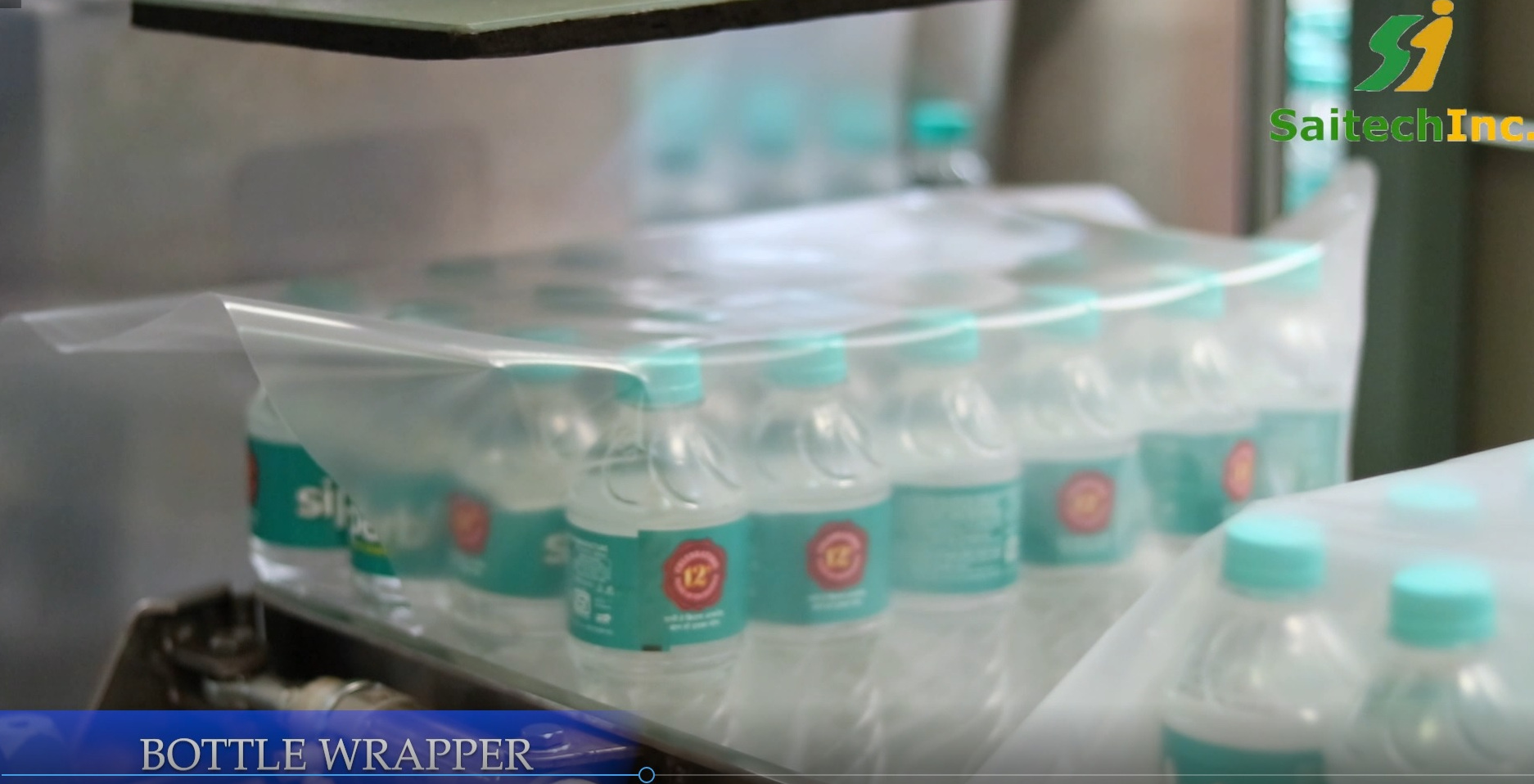

Our Semi Auto Sleeve Wrapping machines perform best to shrink wrap products of same shape, sizes PET bottles, boxes ,glass bottles with suitable base tray , tetra Brick boxes etc.
- Our Semi Automatic Machines are compact, and Robust.
- Size Range from 400 to 1500mm film width,combined with 75 to 400mm Height.

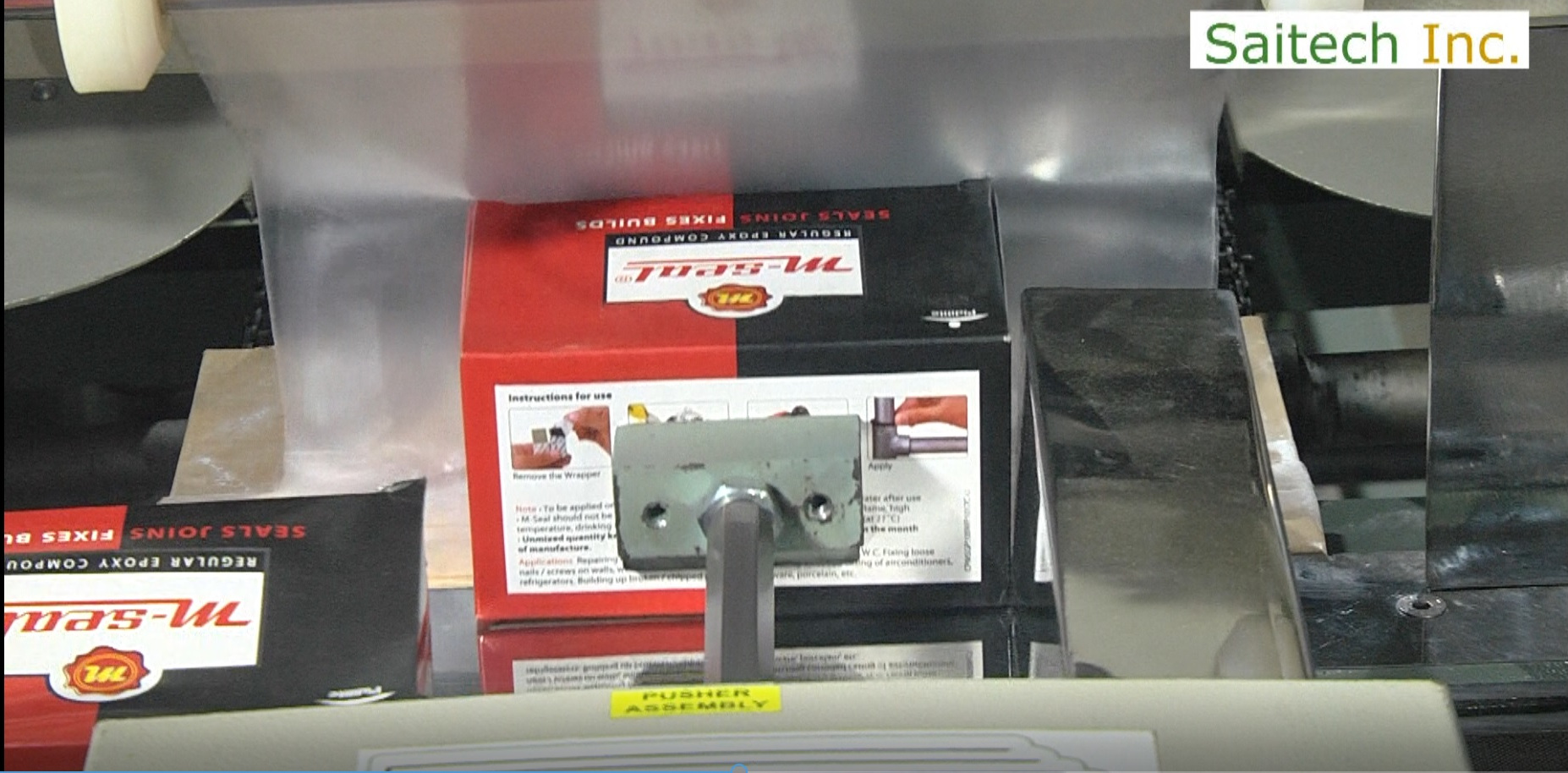

- Pusher Unit cycles leaving operator to be ready with next product.
- PTFE Coated sealing / cutting blade enhance strong seal.
- High product versatility with easy adaptation to different product sizes.
- Integral pack cooler / heavy duty discharge conveyor.
- Products can be packed with / without base tray.
Videos
SPECIFICATION
| MODELS | SASW-600 | SASW-750 | SASW-900 | SASW-1200 |
|---|---|---|---|---|
| Power Supply | 3 Ph 440 V 50 Hz | 3 Ph 440 V 50 Hz | 3 Ph 440 V 50 Hz | 3 Ph 440 V 50 Hz |
| Installed Power | 25 kW 35 hp | 25 kW 35 hp | 27 kW 38 hp | 27 kW 38 hp |
| Actual Power Usage | 22.5 kW 31 hp | 22.5 kW 31 hp | 25 kW 35 hp | 25 kW 35 hp |
| Air Pressure | 6 to 8 Kg | 6 to 8 Kg | 8 to 10 Kg | 8 to 10 Kg |
| Air Consumption | 6 Kg | 6 Kg | 8 Kg | 8 Kg |
| Prod Max Size / Height | 350mm | 450mm | Customized | Customized |
| Sealer Bar Length | 600mm | 750mm | 900mm | 1200mm |
| Full Roll Max Size & Weight | 450 & 20Kg | 550 & 20Kg | 750 & 20Kg | 1000 & 20Kg |
| Working Height | 850mm ±50 | 850mm ±50 | 850mm ±50 | 850mm ±50 |
ADDITIONAL INFORMATION
- Port of Dispatch: JNPT - MUMBAI
