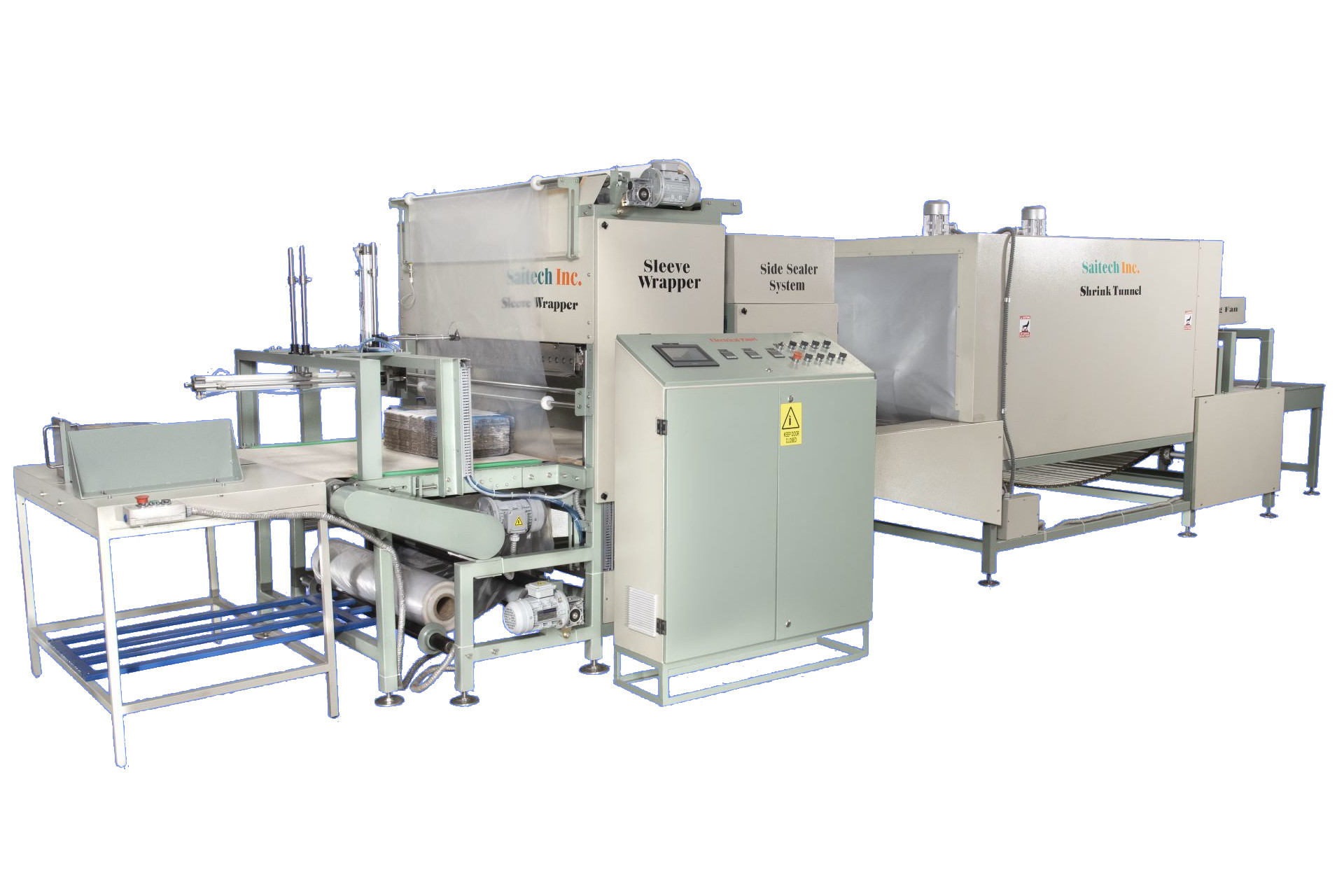

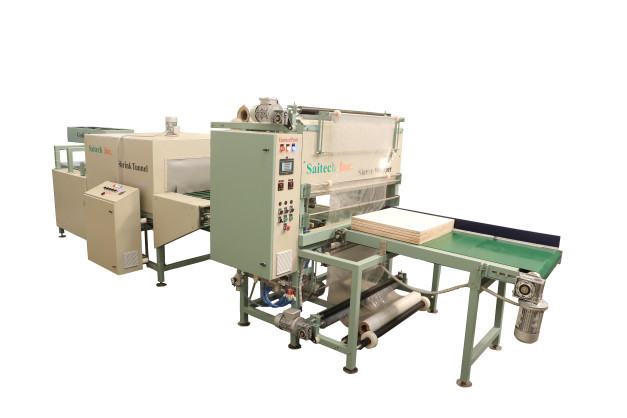

In-line Feeding Automatic Shrink Wrapping Machine

These are mainly customised machines with IN-line feeding of products is composed of THREE to FOUR in parts, where in again machine designed for maximum pack size , and compitable for smaller pack size too.

  • Robust Machine Construction
  • Wrapping machine can be equipped with different feeding system and other options that makes the machine fully automated unit.
  • Digital temperature control and PTFE Coated Sealing bar enables repeated quality of the seal.
  • Sealing bar is equipped with safety sensors to prevent possible injuries.
  • Motorised upper & bottom film roll unwinding system.
  • Conveyor belt speed is VFD controlled, which enables very precise speed control.
  • Shrink tunnel equipped with turbo blower fan.

Videos


SPECIFICATION
MODELS ASW-750 60 / 90 BPM 90 / 120 BPM 120 / 180 BPM
Power Supply 3 Ph 440 V 50 Hz 3 Ph 440 V 50 Hz 3 Ph 440 V 50 Hz 3 Ph 440 V 50 Hz
Installed Power 26 kW 37 hp 26 kW 37 hp 34 kW 48 hp 36 kW 50.5 hp
Actual Power Usage 24 kW 34 hp 24 kW 34 hp 32 kW 45 hp 34 kW 48 hp
Air Pressure 6 to 8 Kg 6 to 8 Kg 6 to 8 Kg 6 to 8 Kg
Air Consumption 7 Kg 7 Kg 7 Kg 7 Kg
Prod Max Size / Height 350mm 350mm 350mm 350mm
Sealer Bar Length 750mm 750mm 750mm 750mm
Full Roll Max Size & Weight 600mm 600mm 600mm 600mm
Working Height 850mm ± 50 850mm ± 50 1000mm ± 50 1000mm ± 50

ADDITIONAL INFORMATION
  • Port of Dispatch: JNPT - MUMBAI
